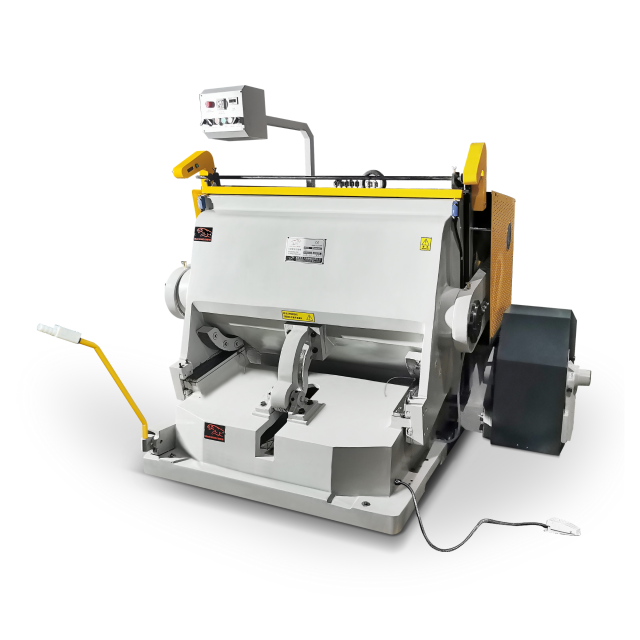

LIBAO series hand feeding die cutting & creasing machine, also called as clam shell die cutter, is a kind of special equipment for die cutting and creasing a wide range of materials, such as paper, cardboard, corrugated board, plastic sheet and leather.
Online InquiryIntroduction
The hand feeding die cutting & creasing machine, also called as clam shell die cutter, is a kind of special equipment for die cutting and creasing a wide range of materials, such as paper, cardboard, corrugated board, plastic sheet and leather. It is applicable to the fields of printing, packaging, decoration and plastic industries. LIBAO series machine has been well accepted by the customers from home and abroad due to its outstanding performance, reliable in quality, easy for operating and low cost in price.
Technical Parameters
Model
ML-1300W
ML-1400W
ML-1500W
Working area
of Platen
1300×920mm
1400×1000mm
1500×1050mm
Working speed
15time/min ± 3
15time/min ± 3
13time/min ± 3
Max. Length
Of Cutting
40m
40m
45m
Distance
Adjusting
27+10 -1mm
27+10 -1mm
27+10 -1mm
Model of
paper feeding
By hand
By hand
By hand
Power of Main
Motor
7.5kw
7.5kw
7.5kw
